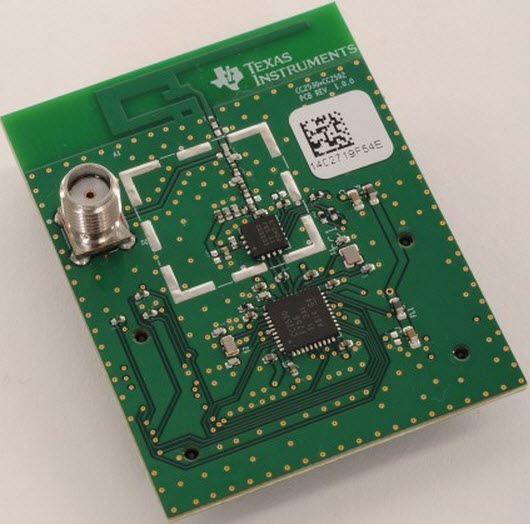

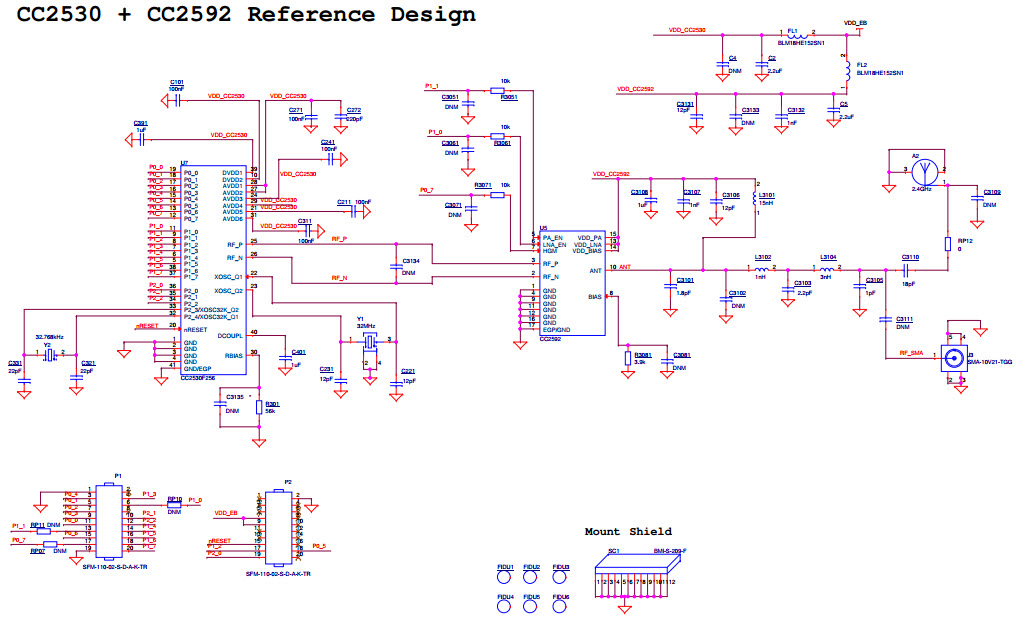

CC2530-CC2592EM-RD, SimpleLink ZigBee Network Range Extender Reference Design
Referenzdesign unter Verwendung des Teils CC2530F256RHAR von Texas Instruments
Bilder
1 / 2
Für Endprodukte
- Home Automation
- Industrial Automation HMI
- Lighting
- Metering
- Networking
Beschreibung
- CC2530-CC2592EM-RD, SimpleLink ZigBee Network Range Extender Reference Design. ZigBee applications such as home and industrial automation, lighting, metering and sensor networks could need longer RF transmission range and better sensitivity than the stand-alone CC2530 can offer. new SimpleLink CC2530-CC2592 reference design pairs the cost-effective SimpleLink ZigBee CC2530 wireless MCU with SimpleLink CC2592 range extender improving the receiver sensitivity by 2-3 dB and increasing the total link budget to 120 dB, enabling significant improvements in the range of each node in the ZigBee network
Empfohlene Bauteile (216)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
FA-128 24.0000MD30X-K0 | Seiko Epson Corporation | Crystals | Crystal 24MHz ±30ppm (Tol) ±30ppm (Stability) 10pF FUND 80Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
FA-128 24.0000MF20X-W3 | Seiko Epson Corporation | Crystals | Crystal 24MHz ±10ppm (Tol) ±20ppm (Stability) 12pF FUND 80Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 25.0000MD20X-E3 | Seiko Epson Corporation | Crystals | Crystal 25MHz ±30ppm (Tol) ±20ppm (Stability) 6pF FUND 80Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 27.0000MF18X-AJ | Seiko Epson Corporation | Crystals | Crystal 27MHz ±10ppm (Tol) ±18ppm (Stability) 8pF FUND 60Ohm 4-Pin Ultra Mini-CSMD | In den Warenkorb | |
|
|
FA-128 32.0000MF10Z-W3 | Seiko Epson Corporation | Crystals | Crystal 32MHz ±10ppm (Tol) ±10ppm (Stability) 12pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 40.0000MF10Z-AJ | Seiko Epson Corporation | Crystals | Crystal 40MHz ±10ppm (Tol) ±10ppm (Stability) 8pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 54.0000MF15Z-E0 | Seiko Epson Corporation | Crystals | Crystal 54MHz ±10ppm (Tol) ±15ppm (Stability) 6pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 32.000000MHz 8.0 +10.0-10.0 | Seiko Epson Corporation | Crystals | Crystal 32MHz ±10ppm (Tol) 8pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 26.0000MF10Z-W3 | Seiko Epson Corporation | Crystals | Crystal 26MHz ±10ppm (Tol) ±10ppm (Stability) 12pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R | In den Warenkorb | |
|
|
FA-128 26.000000MHz 8.0 +10.0-10.0 | Seiko Epson Corporation | Crystals | Crystal 26MHz ±10ppm (Tol) 8pF FUND 60Ohm 4-Pin Ultra Mini-CSMD | In den Warenkorb | |
|
|
FA-128 27.000000MHz 10.0 +30.0-30.0 | Seiko Epson Corporation | Crystals | Crystal 27MHz ±30ppm (Tol) 10pF FUND 60Ohm 4-Pin Ultra Mini-CSMD | In den Warenkorb | |
|
|
FA-128 44.000000MHz 12.0 +10.0-10.0 | Seiko Epson Corporation | Crystals | Crystal 44MHz ±10ppm (Tol) 12pF FUND 60Ohm 4-Pin Ultra Mini-CSMD | In den Warenkorb | |
