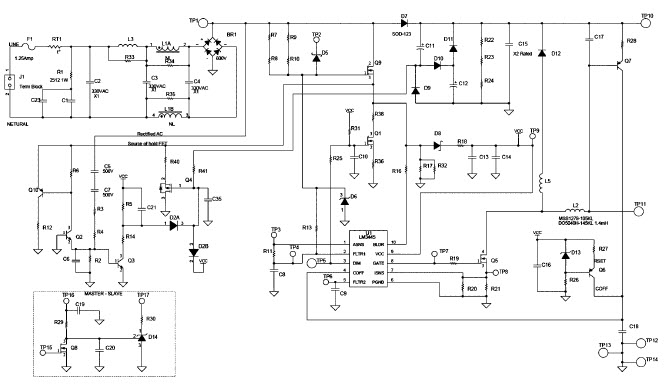

Evaluation Board using LM3445 TRIAC dimmable Offline LED driver
Referenzdesign unter Verwendung des Teils LM3445MM/NOPB von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial LED Lighting
- Residential Lighting
- Solid state lighting
Beschreibung
- Evaluation Board included in this shipment is capable of converting a 176VAC to 305VAC input that has been phase dimmed to drive multiple LED's at up to 500 mA average current. The Evaluation board utilizing the LM3445 will automatically adjust the LED current and light output in relation to the TRIAC firing angle. The target solution for this design was 230VAC input driving 8 series connected white LEDs. In this configuration the LM3445 will run at a nominal switching frequency of 80 kHz and supply a maximum of 350 mA
Haupteigenschaften
-
Input Voltage176 to 305 (AC) V
-
Output Voltage27.2 V
-
Output Current0.35 A
-
Number of Derived Elements8
Empfohlene Bauteile (2)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
LM3445MM/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
|
|
LM3445MM/NOPB | Texas Instruments | LED Drivers | LED Driver 2850uA Supply Current 10-Pin VSSOP T/R | In den Warenkorb | |
