Low Power Fully Differential Programmable Gain Amplifier Reference Design
Referenzdesign unter Verwendung des Teils OPA2683IDGST von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Communications and Telecom
- Industrial
- Measurement Instruments
- Test Equipment
Beschreibung

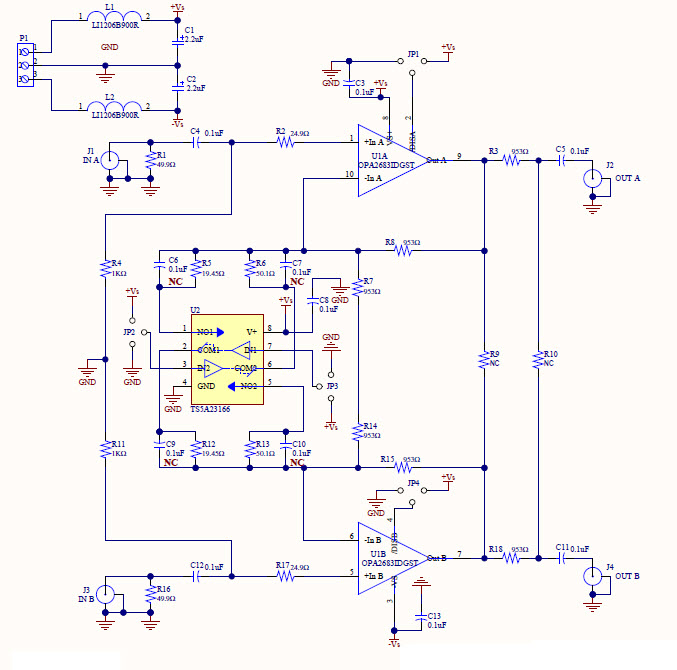

- Reference Design for a Low Power Fully Differential Programmable Gain Amplifier using the OPA2683 Low Power Dual Current Feedback Amplifier. This design guide reviews some of the design challenges necessary to create such a circuit. The design guide reviews the results and provides some recommendations for using/designing a Low Power FDA PGA
Haupteigenschaften
-
Gain36.9 dB
-
Supply Voltage5 V
Empfohlene Bauteile (7)
