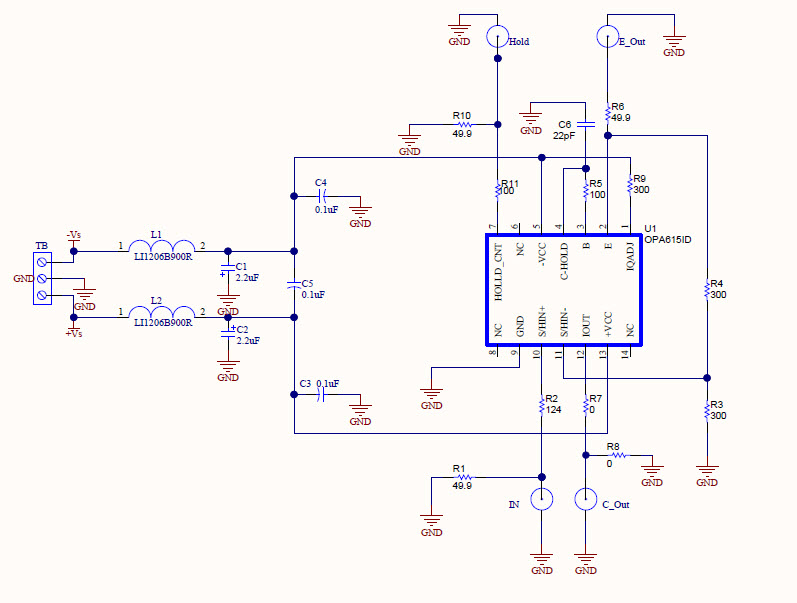

Versatile Sample/Hold Circuit for Industrial and T/M applications
Referenzdesign unter Verwendung des Teils OPA615IDR von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Industrial
- Measurement Instruments
- Test Equipment
Beschreibung
- Using the OPA615 high bandwidth, DC restoration circuit, this reference design provides a high bandwidth, high precision sample/hold circuit for various applications. Supported by a full scale design guide, the circuit can be easily adjusted for a given application
Haupteigenschaften
-
Supply Voltage5 V
Empfohlene Bauteile (4)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
OPA615IDR | Texas Instruments | Special Purpose Amplifiers | Comparator Single ±6.2V 14-Pin SOIC T/R | In den Warenkorb | |
|
OPA615IDGST | Texas Instruments | Special Purpose Amplifiers | Comparator Single ±6.2V 10-Pin VSSOP T/R | In den Warenkorb | |
|
|
OPA615ID | Texas Instruments | Special Purpose Amplifiers | Comparator Single ±6.2V 14-Pin SOIC Tube | In den Warenkorb | |
|
|
OPA615IDR | Texas Instruments | Special Purpose Amplifiers | Comparator Single ±6.2V 14-Pin SOIC T/R | In den Warenkorb | |
