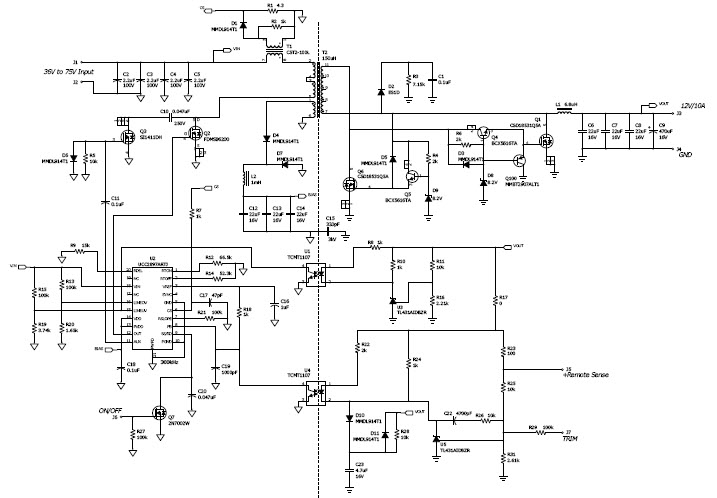

PMP7451, 36Vdc-75Vdc Input, 12V/10A Active Clamp forward Reference Design
Referenzdesign unter Verwendung des Teils UCC2897AR von Texas Instruments
Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Consumer Electronics
Beschreibung
- Reference design generates a 12V/10A output from a standard 48V telecom input. The UCC2897A controls an active clamp forward converter power stage. The low gate charge and low RDSon of the CSD18531Q5A, implemented as self-driven synchronous rectifiers, provide for a highly efficient design. This design is laid out in a standard 8th brick footprint and includes enable, remote sense, and output overvoltage features
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage36 to 75 V
-
Output Voltage12 V
-
Output Current10 A
-
Output Power120 W
-
TopologyForward- Active Clamp|Forward- Synchronous
Empfohlene Bauteile (5)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
TL431AIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
TCMT1107 | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SSOP T/R | In den Warenkorb | |
|
|
TL431AIDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin SOT-23 T/R | In den Warenkorb | |
|
UCC2897ARGPR | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
|
|
UCC2897ARGPT | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin VQFN EP T/R | In den Warenkorb | |
