TIDM-ULTRASONIC-WATER-FLOW-MEASUREMENT, Ultrasonic Water Flow Measurement Reference Design
Referenzdesign unter Verwendung des Teils MSP430FR6872 von Texas Instruments
Bilder
1 / 6
Zugehörige Dokumente
Für Endprodukte
- Gas and Water Meter
- Power Line Communication
Beschreibung

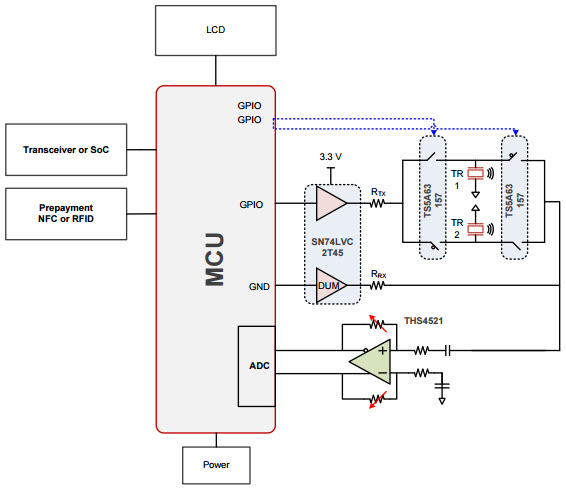

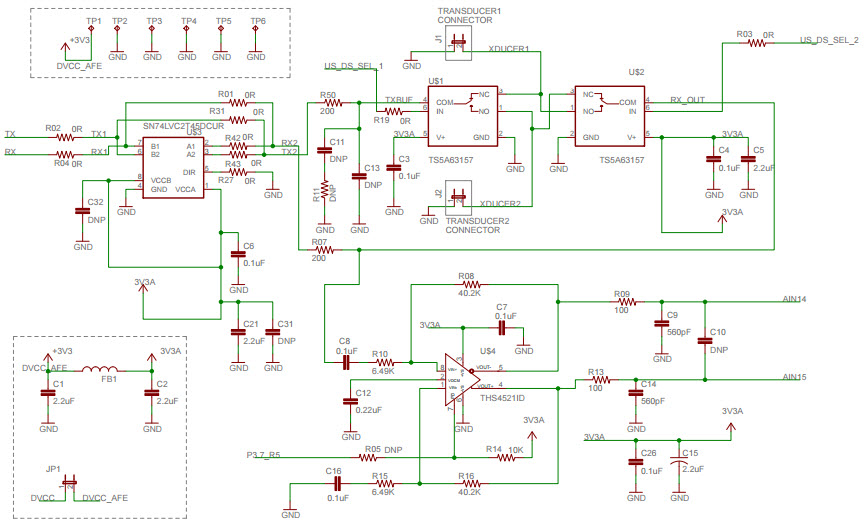

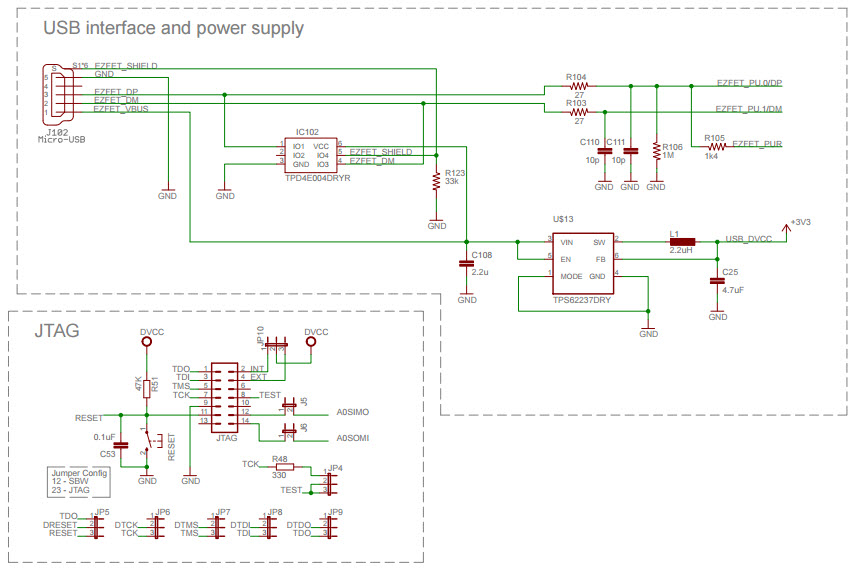

- TIDM-ULTRASONIC-WATER-FLOW-MEASUREMENT, Ultrasonic Water Flow Measurement Reference Design. This Ultrasonic Water Flow Measurement system is ideal for providing highly accurate measurement across wide flow ranges as low as 1.4gpm. The design is based on a single MCU with discrete analog components. It uses a unique propriety algorithm that improves robustness and performance in flow measurement across wide range of operating conditions. This design is fully compatible with RF plug-in evaluation modules for wireless AMI networks
Haupteigenschaften
-
Embedded System TypeMCU
-
Family NameMSP430
Empfohlene Bauteile (10)
| Teilenummer | Hersteller | Typ | Beschreibung | |||
|---|---|---|---|---|---|---|
|
MSP430FR6972IPM | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin LQFP Tray | In den Warenkorb | |
|
|
MSP430FR6972IPMR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin LQFP T/R | In den Warenkorb | |
|
MSP430FR6972IRGCR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin VQFN EP T/R | In den Warenkorb | |
|
SN74LVC2T45DCTR | Texas Instruments | Level Translators | Voltage Level Translator 2-CH Bidirectional 8-Pin SSOP T/R | In den Warenkorb | |
|
MSP430FR6972IRGCT | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin VQFN EP T/R | In den Warenkorb | |
|
THS4521ID | Texas Instruments | Operational Amplifiers - Op Amps | SP Amp DIFF AMP Single R-R O/P ±2.75V/5.5V 8-Pin SOIC Tube | In den Warenkorb | |
|
TPS62237DRYT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 2.05V to 6V Synchronous Step Down Single-Out 3.3V 0.5A 6-Pin USON T/R | In den Warenkorb | |
|
TS5A63157DCKR | Texas Instruments | Analog Switch Multiplexers | Analog Multiplexer Single 2:1 6-Pin SC-70 T/R | In den Warenkorb | |
|
|
MSP430FR6872IRGCR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin VQFN EP T/R | In den Warenkorb | |
|
|
MSP430FR6872IPMR | Texas Instruments | Microcontrollers - MCUs | MCU 16-bit MSP430 RISC 64KB FRAM 2.5V/3.3V Medical 64-Pin LQFP T/R | In den Warenkorb | |
