TPS40007EVM-001, Evaluation Board for the TPS40007-Based Converter Delivers 10-A Output
Referenzdesign unter Verwendung des Teils TPS40007DGQ von Texas Instruments

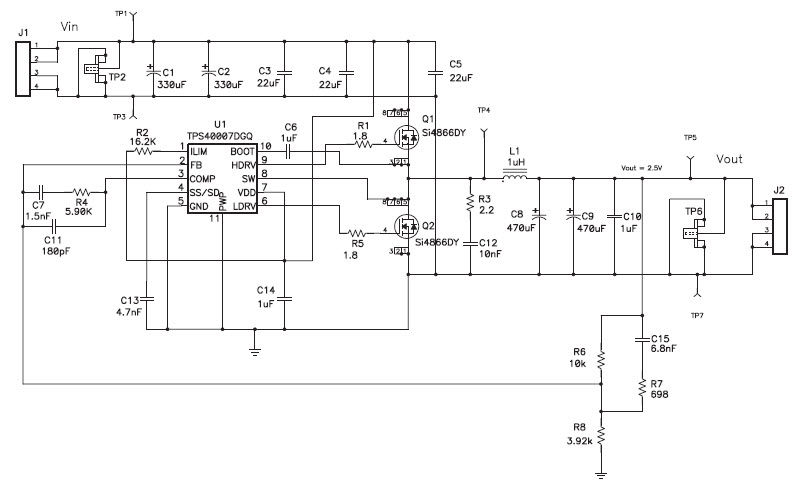

Bilder
1 / 1
Zugehörige Dokumente
Für Endprodukte
- Power Supplies
- Processor Power Management
- Servers
- Wired Networking
- Wireless Base Station
Beschreibung
- TPS40007EVM-001, Evaluation Board for the TPS40007-Based Converter Delivers 10-A Output. The TPS40007-Based Converter Delivers 10-A Output. TPS40007 is a voltage-mode, synchronous buck PWM controller that uses proprietary Predictive Gate Drive technology to wring maximum efficiency from step-down converters. This controller provides a bootstrap circuit to allow the use of an N-channel MOSFET as the topside buck switch to reduce conduction losses and increase silicon device utilization
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage3.3 to 5 V
-
Output Voltage2.5 V
-
Output Current0 to 10 A
-
Efficiency95 %
-
TopologyBuck
