Typical Application for LM317L Basic High Voltage Regulator
Referenzdesign unter Verwendung des Teils LM317L von Texas Instruments
Bilder
1 / 1
Für Endprodukte
- Automotive Lighting
- Battery Charger
- Switching Power Supply
Beschreibung

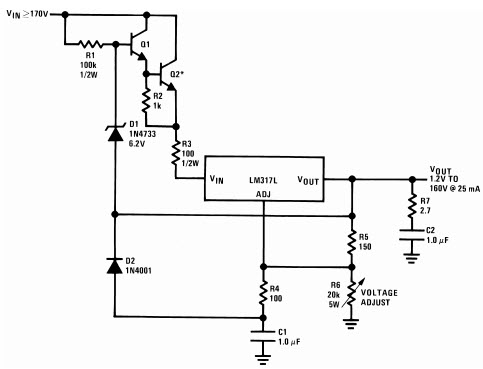

- Typical Application for LM317L Basic High Voltage Regulator. The LM317L-N is an adjustable positive voltage regulator capable of supplying 100 mA over 1.2 to 37 V output range. The LM317L-N is easy to use and requires only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators
Haupteigenschaften
-
Conversion TypeDC to DC
-
Input Voltage170 V
-
Output Voltage8 to 160 V
-
Output Current0.025 A
-
TopologyLDO
